Global Snapshot Algorithm: Details

This webpage gives some details of the global snapshot algorithm.

Global Snapshot: Details

This webpage gives a code outline for the global snapshot algorithm and gives examples of steps in the algorithm.

Code Structure

The code outline is given below in Python. channels_recorded is a dict (dictionary), where channels_recorded[sender] becomes True when the snapshot for the channel from this sender has finished being recorded. channel_snapshots is a dict where channel_snapshots[sender] is the ongoing recording of the snapshot of the channel from the sender.

taken_local_snapshot = False
channel_snapshots = {key: [] for key in predecessors}
channels_recorded = {key: False for key in predecessors}

start()
def receive(message, sender):
   if isinstance(message, Marker) and not taken_local_snapshot:
        local_snapshot = record_state()
        taken_local_snapshot = True
        channels_recorded[sender] = True
        output_message = Marker()
        for receiver in successors:
            send(output_message, receiver)
   elif isinstance(message, Marker) and taken_local_snapshot:
        channels_recorded[sender] = True
   else:
        if taken_local_snapshot and not channels_recorded[sender]:
           channel_snapshots[sender] = \\
                       channel_snapshots[sender].append(message)

The remainder of this webpage consists of examples.

Examples

Example: Snapshots may change a Client's Computation

This example shows that the OS algorithm may change a client's computation though it does not change the client's dataflow.

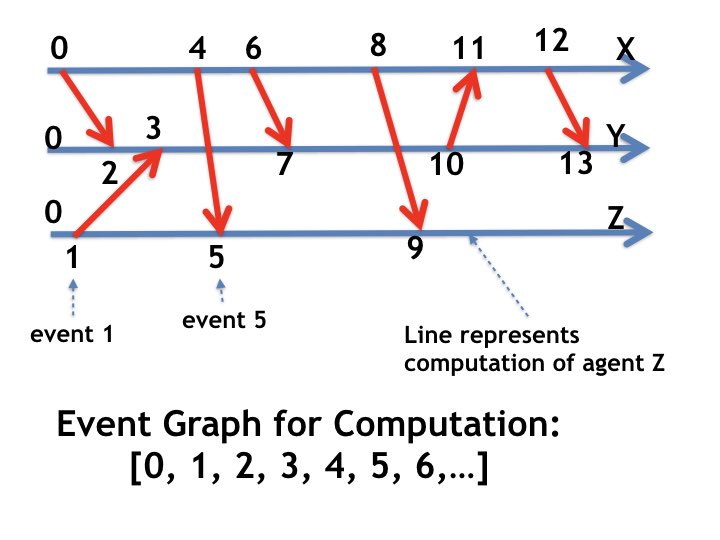

Figure 2 is a representation of a computation with event sequence \([0, 1, 2, \ldots, ]\) and agents \(X, Y, Z\) without a concurrent OS algorithm, and figure 3 shows how the OS changes this computation. Events later in the computation are placed to the right of earlier events.

Fig2 — Fig.2: Representation of a Computation without Snapshots

Figure 3 shows how a client's computation is changed when the OS takes snapshots. The local snapshots taken by agents are shown as a yellow circle on the agents' timelines. The OS delays event 3 so that it occurs after events 4, 5, 6, and 7, as shown in the figure. The OS changes the computation, but it does not change the dataflow.

In figure 3, the pre-snapshot events are 0, 1, 2, 4, 6. There is only one message received in a pre-snapshot event, namely the message represented by the edge (0, 2). So, every message received in a pre-snapshot event is sent in a pre-snapshot event. The figure shows that the set of pre-snapshot events is closed.

Example: Steps in a Global Snapshot Algorithm: Initiation

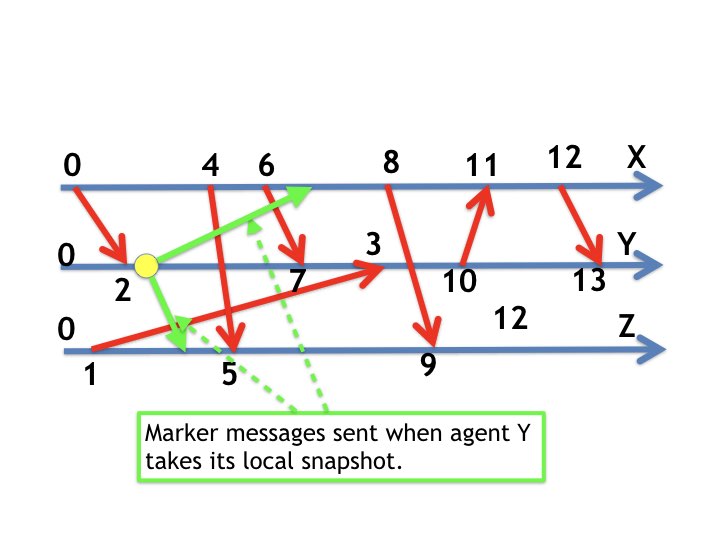

Figure 4 illustrates the first step of the algorithm.

Fig4 — Fig.4: Agent Sends Markers when it Takes its Local Snapshot

Agent Y takes its local snapshot shown as a yellow vertex on Y's timeline. When Y takes its snapshot it sends markers on its output channels. The markers are shown as green edges in the figure.

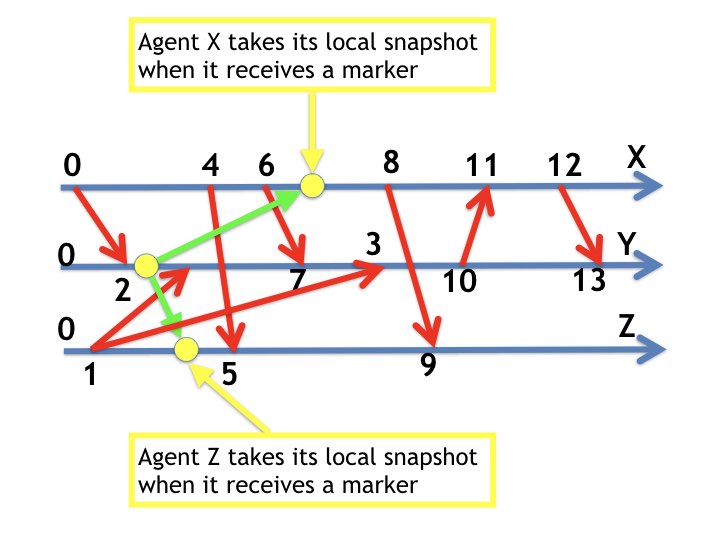

When agents X and Z each receive the markers, they take their local snapshots because they haven't taken snapshots earlier.

Fig5 — Fig.5: Agents Take Local Snapshots when they Receive Markers

The actions by X and Z of taking their snapshots are shown as yellow vertices on their timelines in figure 5.

Example: Agents take Snapshots upon Receiving Markers

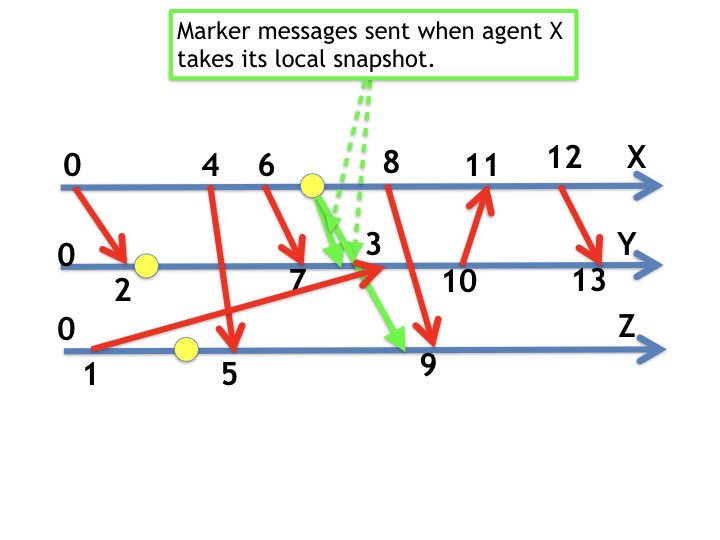

When X and Z take their snapshots they send markers out on their output channels. The markers sent by X are shown in figure 7. The markers sent by Z are not shown in the figure.

Fig6 — Fig.6: When an Agent takes its Snapshot it sends Markers.

Example: Snapshot of a Channel

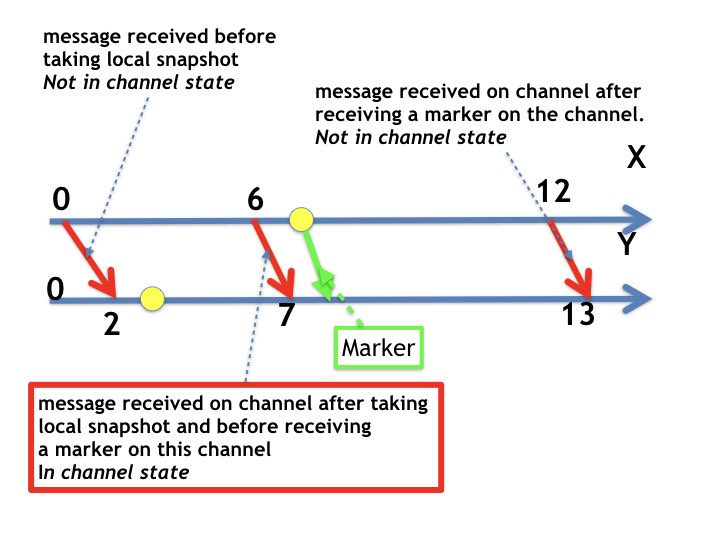

Figure 8 shows how agent Y determines the state of the channel from X to Y in the global snapshot. Y starts recording the messages it receives along this channel after Y takes its snapshot and stops the recording when it receives a marker on this channel The only message in this interval is the message corresponding to edge (6, 7).

Fig7 — Fig.7: Example: Recording a Channel State

The message corresponding to edge \((0, 2)\) is from X to Y but is not in the snapshot of the channel because both \(0\) and \(2\) are pre-snapshot events. Likewise, the message corresponding to edge \((12, 13)\) is from X to Y but is not in the snapshot of the channel because both \(12\) and \(13\) are post-snapshot events. The message corresponding to edge \((6, 7)\) was sent in a pre-snapshot event and received in a post-snapshot event, and so it is in the snapshot of the channel.

Next logical clocks.

K. Mani Chandy, Emeritus Simon Ramo Professor, California Institute of Technology
